Global Solutions
Kitchens
Innovation at the service of energy performance and comfort

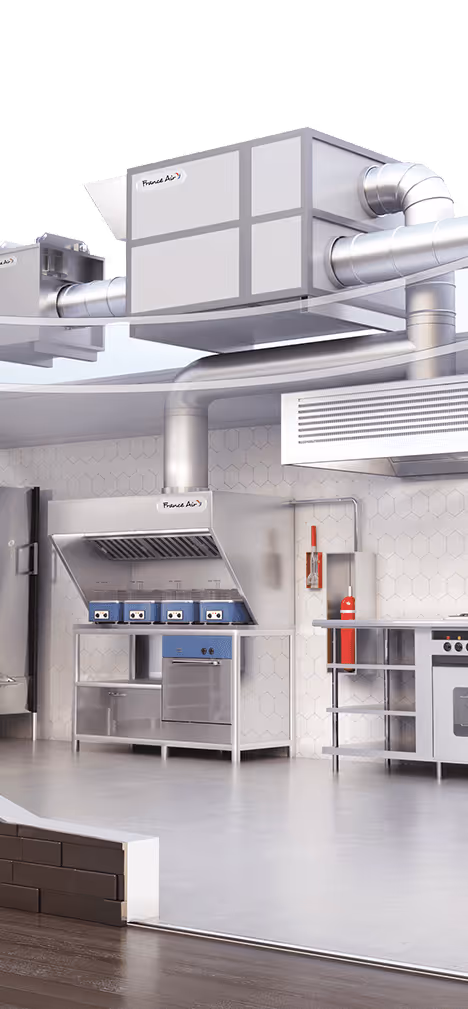

Professional Open Kitchen
Kwixo®, system for regulating the extraction flow and automatically compensating, according to the measurements of the manufacturing load carried out by means of sensors installed in the extraction duct. Thus, the extraction and compensation flow is reduced to the minimum necessary, resulting in an important energy optimization of the system and improvement of the comfort of the occupants.
Hood of other collection efficiency Moorea® Pulse HPC. Equipped with its peripheral air injection system, it allows a reduction of flow in the order of 30% compared to conventional solutions.
Compensation unit, Module Play®, for temperature correction and compensation air filtration. Its controller allows you to receive an analog signal to adjust the compensation flow according to the needs of the extraction system, thus guaranteeing the correct hierarchy of pressures, necessary to avoid the transfer of heat and odors to the dining area.
Ar/ar plate recuperator Koox® 2, designed to transfer the heat extracted in the extraction of hoods and ventilated ceilings, to the pre-heating of the compensating air, thus reducing the heating needs and increasing the efficiency of the system. It has an integrated self-cleaning system.
Automatic fire extinguishing system Pyrosafe® Pro. Activated by thermal fuses mounted in the capture and by the trigger button, it allows in case of fire, the expression of the extinguishing agent on the preparation area, neutralizing the focus of fire.
Alto® Fryer Hoodspecially designed for areas of high thermal load such as barbecues and frying areas. The design has been developed for maximum extraction efficiency, allowing a very significant reduction in the required extraction flow compared to conventional hoods.
Kitchen exhaust fan, Defum'Air® ECM, combines its high energy performance, with ease of maintenance, through access through its Turbine/Motor tilting system, which allows easy access to all components.
Corner curtain SmokeTex M, allows the kitchen to be compartmentalized in the event of a fire outbreak in the kitchen, containing the dispersion of smoke, to protect the dining area.
Professional Compartmentalized Kitchen
Alto® Fryer Hoodspecially designed for areas of high thermal load such as barbecues and frying areas. The design has been developed for maximum extraction efficiency, allowing a very significant reduction in the required extraction flow compared to conventional hoods.
Automatic fire extinguishing system Pyrosafe® Pro. Activated by thermal fuses mounted in the capture and by the trigger button, it allows in case of fire, the expression of the extinguishing agent on the preparation area, neutralizing the focus of fire.
Moorea® Lav'Air, designed for the specific requirements in the collection of vapors of industrial dishwashers.
Clean Light® Cooker Hood, for extraction and compensation of clothing areas. The extraction is equipped with an integrated direct UV system to neutralize odors and fats captured by the extraction. This solution eliminates the space required for the installation of external filters.
Compensation unit, Module Play®, for temperature correction and compensation air filtration.
Extraction and smoke extraction fan DolBox F400, prepared to handle extraction temperatures of up to 200º C continuously, with double panels provided with 30 mm rock wool insulation.

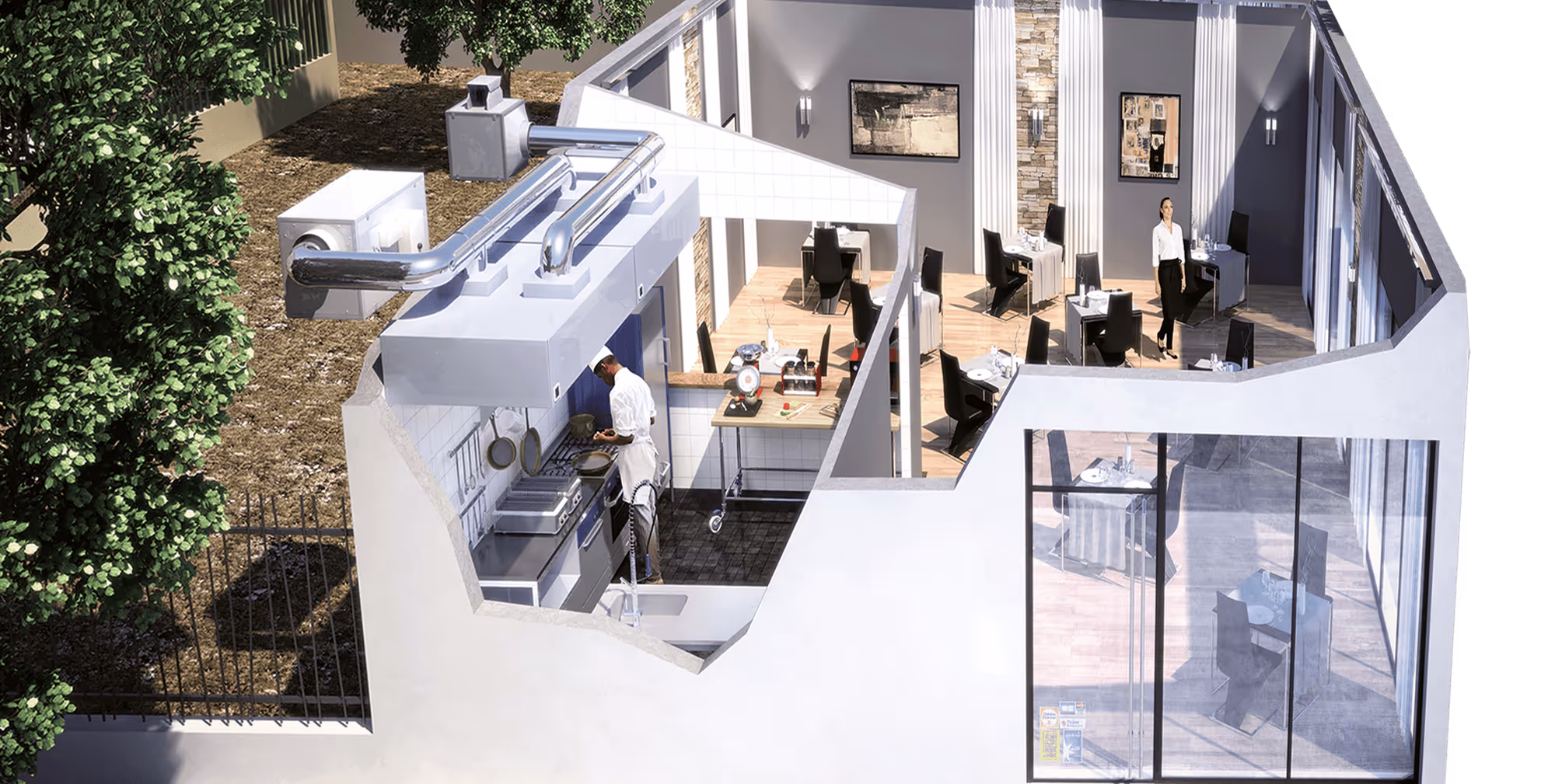

Professional Commercial Kitchen
Actinys hood, with heat recovery by batteries, allowing the compensation temperature to be corrected in winter, by recovering the energy extracted from the production area. The entire control and hydraulic system is integrated inside the hood.
Compensation fan PowerFlow EC, equipped with M5 filter, clogged with the exhaust fan through a Evolys® Sensein order to maintain the correct depression of the kitchen.
Frequency Inverter Senseo Drive V2, designed for direct outdoor application, robust with IP66 protection rating.
Extraction fan DolBox Evo, with AC motor out of flow allows continuous extraction up to 120ºC.

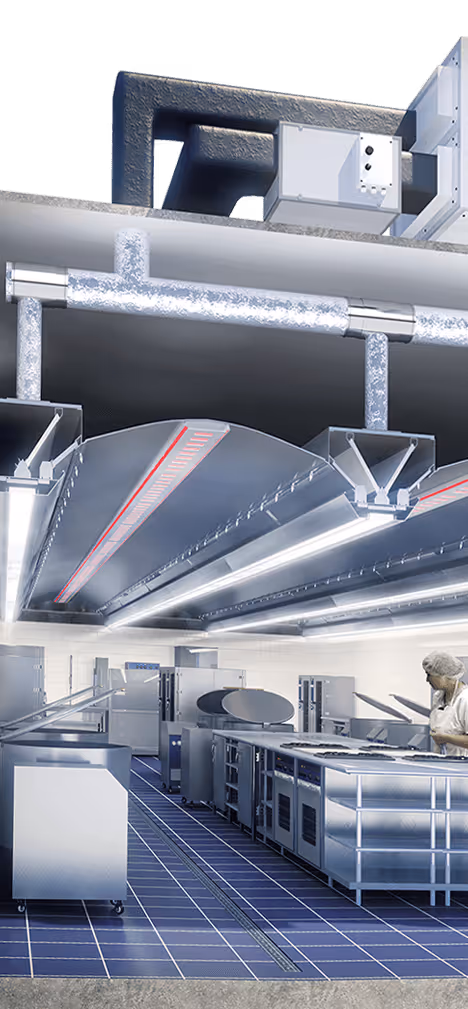

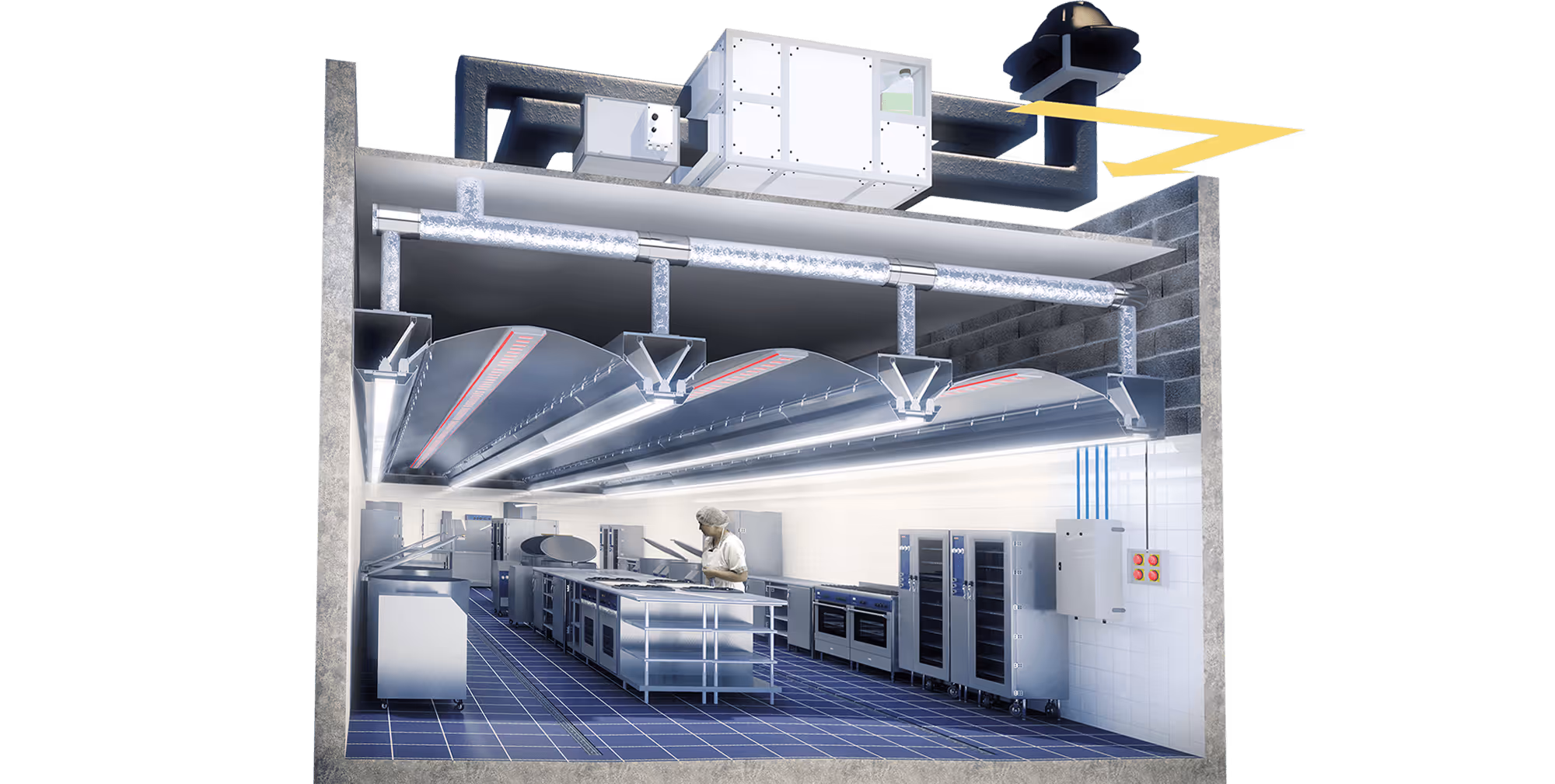

Professional Industrial Kitchen
Ventilated ceiling Lumispace®. They combine their effective capture capacity, with their integration into the interior architecture of the kitchen. The closed extraction tanks are equipped with an integrated washing system that guarantee the correct cleaning of the filters and the filling, even during operation.
Automatic washing cabinet for ceilings Lumispace®. Equipped with a reservoir of cleaning detergent, they promote the preparation and distribution of the cleaning solution by the sprayers that equip the floors of these ceilings.
Extraction fan Simoun® F400 ECM, for application at the top of the sump, equipped with high efficiency motor and vertical acoustic rejection kit.
Ar/ar plate recuperator Koox®, designed to transfer the heat extracted in the extraction of hoods and ventilated ceilings, to the pre-heating of the compensating air, thus reducing the heating needs and increasing the efficiency of the system. It has an integrated self-cleaning system.
Modular units Modulys® TA Compo® Top, allowing it to be adjusted to the specific dimensional and process needs of each installation.
