Hospital Hygiene
Our experience and know-how at the service of Health and IAQ

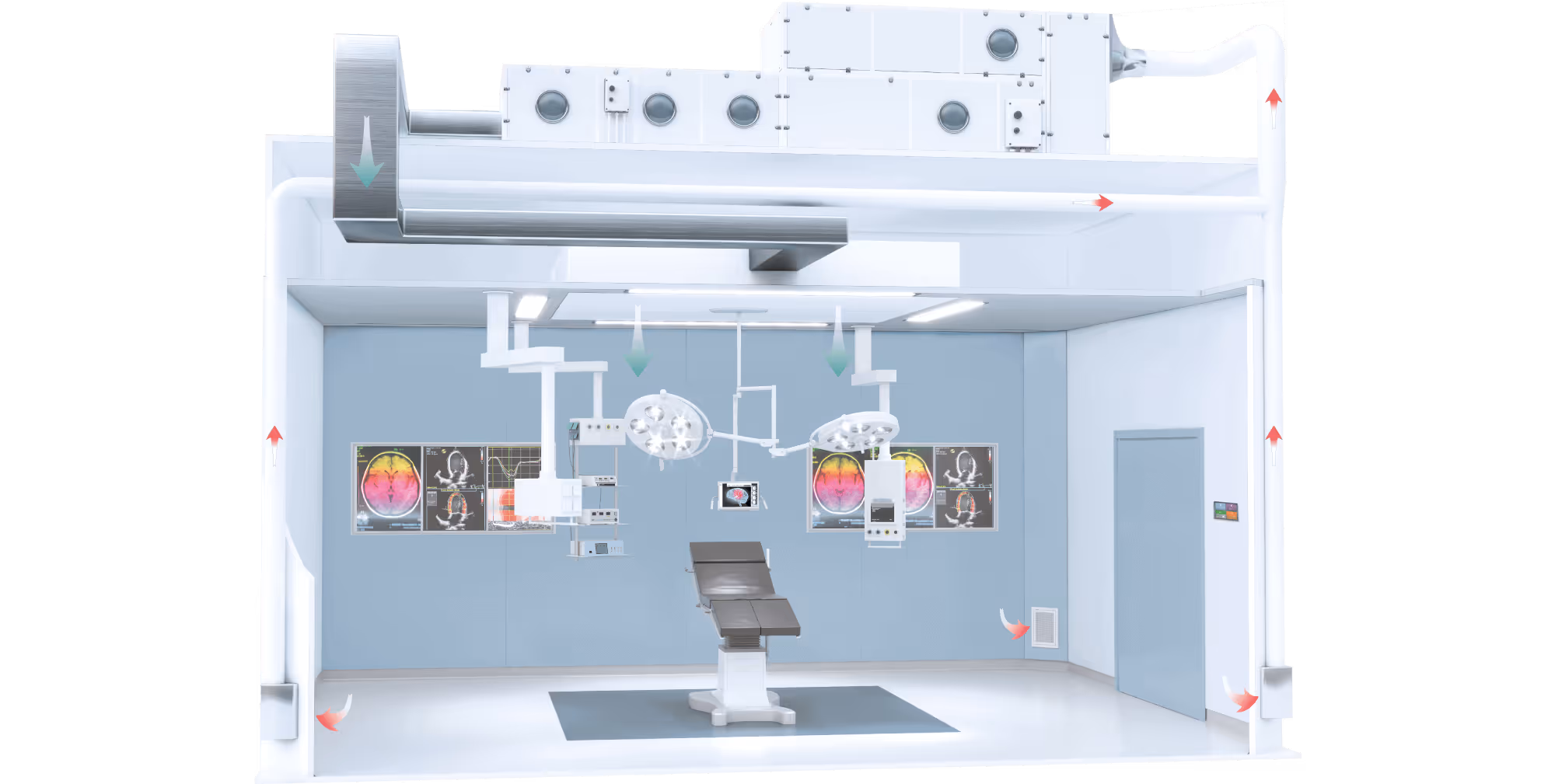

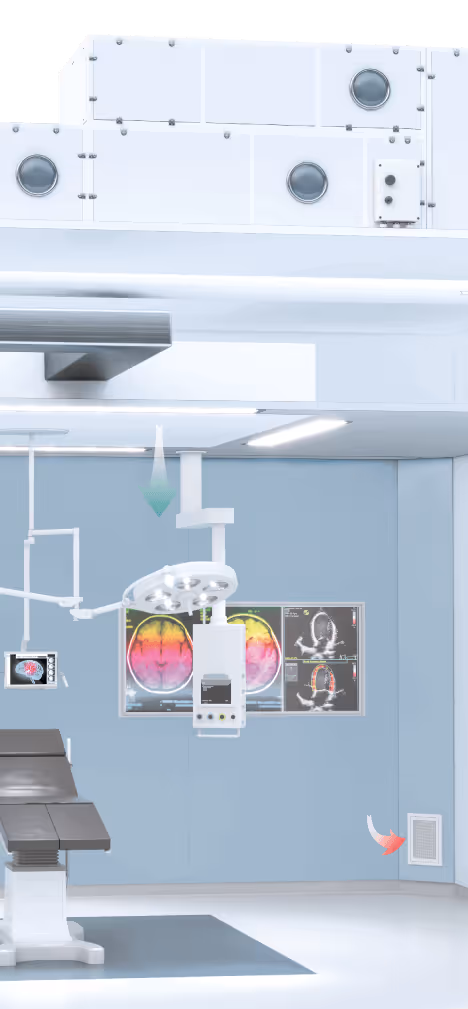

Operating Unit
Recirculation at U.T.A
Return columns GFF SPwith integrated filter designed for installation in the corners of the rooms, through their triangular panels.
Differential flow ceilings FFA Differential for diffusion and terminal HEPA filtration of the blown air. Designed to cover high-risk areas such as surgery rooms and angiographies, they are essential to generate the necessary safety conditions in these interventions. The air blown in, in this case, is 100% delivered by the air treatment unit.
Modular unit with hygienic certification Modulys® TA Compo® Top, adjustable to the needs of each project, allows you to control the temperature and humidity, as well as the adjustment of the pressure of the operating unit, removing fine particles from the blown air.
System MediTabtouch interface for control and monitoring of the operating unit system. Allows you to display the pressure, temperature and humidity parameters in the block, allowing the setting of temperature and humidity set-points in an adjustable range.
Operating Unit
Recirculation in the ceiling
Return columns GFF SPwith integrated filter designed for installation in the corners of the rooms, through their triangular panels.
System MediTabtouch interface for control and monitoring of the operating unit system. Allows you to display the pressure, temperature and humidity parameters in the block, allowing the setting of temperature and humidity set-points in an adjustable range.
Differential flow ceilings ULA Differential for diffusion and terminal HEPA filtration of the blown air, equipped with an internal recirculation system, allowing the reduction of air transported to and from the air treatment unit. Intended to cover high-risk areas such as surgery rooms and angiographies, they are essential to generate the necessary safety conditions in these interventions. The air blown in, in this case, is 100% delivered by the air treatment unit.
Internal recirculation system ULA Differential:given the high airflow required to ensure the safety conditions in these applications, recirculators make it possible to reduce the air flow from the air handling unit, resulting in a reduction in the size of the ducts and the size of the air treatment unit.
Modular unit with hygienic certification Modulys® TA Compo® Top, adjustable to the needs of each project, allows you to control the temperature and humidity, as well as the adjustment of the pressure of the operating unit, removing fine particles from the blown air.
Sterile Zone
Laminar flow ceiling BVX 3, with containment screens for the creation of high-protection sterile zones, for applications in the internment of immunocompromised patients, or sterilization zones.
Modular unit with hygienic certification Modulys® TA Compo® Top, adjustable to the needs of each project, allows you to control the temperature and humidity, as well as the adjustment of the pressure of the operating unit, removing fine particles from the blown air.
Return columns GFF SP, with integrated filter designed for installation in the corners of the rooms, through their triangular panels.
Recovery Area
Turbulent flow diffusers with HEPA terminal filtering Diffuse Box® 3. Compatible with different diffusion solutions, they allow to adapt to the requirements of each space.
Compact unit with hygienic certification Power Play® Flex, adjustable to the needs of each project, allow to control the temperature and humidity, as well as the adjustment of the pressure of the operating unit, removing fine particles from the blown air.
